LOADING SHOVEL SEM660D
SPECIFICATION
| LOADING SHOVEL SEM660D | SEM660D SPECIFICATION |
|---|---|
| Rated load | 6000 kg |
| Operating weight with standard bucket | 20117 kg |
| Bucket capacity | 3.3-5.5 m3 |
| Wheel base | 3350 mm |
| Overall dimension | 8414 * 3370 * 3458mm |
| Max. Tractive force | 186 kN |
| Max. Breakout force | 197 kN |
| Max. Dumping height | 3051 mm |
| Gearbox | SEM TR200 |
| Gear shift | Forward 4 and reverse 4 |
| Torque converter | Single stage, 3 elements |
| Max.Travel Speed | 38 km/h |
| Axles | SEM SO32 |
| Engine Model | WEICHAI WD10G240 |
| Rated Power | 175 kW @ 2200 r/min |
| Displacement | 9.7 L |
| Boom raise time | 5.3s |
| Hydraulic cycle time | 9.7 s |
| System Pressure Setting | 18 MPa |
| Service brake | Dry & Caliper, Air to oil control |
| Parking brake | Drum-Type Shoe Brake, Spring Applied & Air Released |
| Tire Size | 23.5-25 |
Mobile (Whatsapp / Wechat): +86-13475960310
Email: jerryli@huakairefit.com
ADVANTAGE

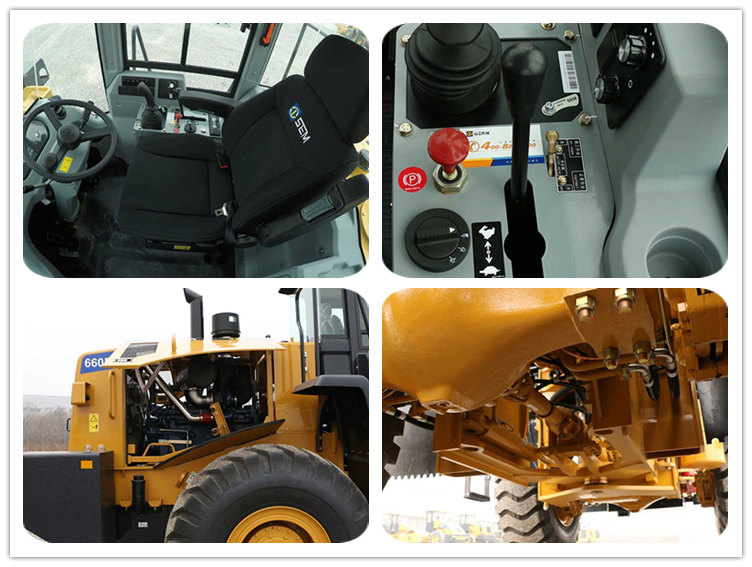

Engine of SEM655D wheel loader
• The engine of Loading shovel SEM660D is WEICHAI WD10G240 with 93% desert air cleaner to reduce earlier wearing 90% and new designed shock absorber.
• Loading shovel SEM660D can adapt all kinds of climate conditions with Large radiator for over 50℃ high temperature conditions and engine preheat for under -35℃ high cold conditions.
• Efficient hydraulic system of Loading shovel SEM660D is with dual pump flow converging system for lower fuel consumption and big tractive force and larger breakout force for higher productivity. The displacement of working pump can reach 112 cc for higher efficiency
• Loading shovel SEM660D's cabin with big space, superior visibility, patented MAC mount for less noise and more comfort,sliding side window,fresh air circulated air conditioner, adjustable air flow outlet to deliver better defrost performance and Suspension adjustable seat.
• Loading shovel SEM660D is widely used in Municipal, Construction, Mining, Forestry, Road, Railway, Port,Landscaping, building, sewer/water in, local construction, Ready mix cement, concrete products, quarry/stone, clay, recycled aggregate, sand and gravel, Highway, street, tunnel, airport, residential commercial.
