PAYLOADER SEM656D
SPECIFICATION
| PAYLOADER SEM656D | SEM656D SPECIFICATION |
|---|---|
| Rated load | 5000 kg |
| Operating weight with standard bucket | 16915 kg |
| Bucket capacity | 2.7-4.5 m3 |
| Wheel base | 3300 mm |
| Overall dimension | 8279 * 2963 * 3457 mm |
| Max. Tractive force | 171 kN |
| Max. Breakout force | 178 kN |
| Max. Dumping height | 3113 mm |
| Gearbox | SEM TR200 |
| Gear shift | Forward 4 and reverse 4 |
| Torque converter | Single stage, 3 elements |
| Max. Travel Speed | 39 km/h |
| Axles | SEM SO28 |
| Engine Model | WEICHAI WD10G220 |
| Rated Power | 162 kW @ 2200 r/min |
| Displacement | 9.7 L |
| Boom raise time | 5.13s |
| Hydraulic cycle time | 9.3 s |
| System Pressure Setting | 18 MPa |
| Service brake | Dry & Caliper, Air to oil control |
| Parking brake | Drum-Type Shoe Brake, Spring Applied & Air Released |
| Tire Size | 23.5-25 |
Mobile (Whatsapp / Wechat): +86-13475960310
Email: jerryli@huakairefit.com
ADVANTAGE
• The engine of PayLoader SEM656D is WEICHAI WD10G220 with 93% desert air cleaner to reduce earlier wearing 90% and new designed shock absorber.
• PayLoader SEM656D can adapt all kinds of climate conditions with Large radiator for over 50℃ high temperature conditions and engine preheat for under -35℃ high cold conditions.
• Efficient hydraulic system of PayLoader SEM656D is with dual pump flow converging system for lower fuel consumption and big tractive force and larger breakout force for higher productivity. The displacement of working pump can reach 112 cc for higher efficiency

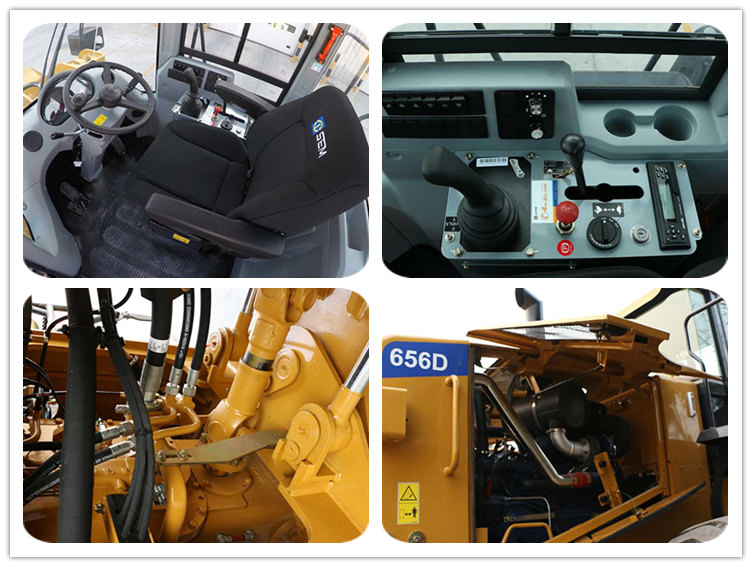

• PayLoader SEM656D's cabin with big space, superior visibility, patented MAC mount for less noise and more comfort,sliding side window,fresh air circulated air conditioner, adjustable air flow outlet to deliver better defrost performance and Suspension adjustable seat.
• PayLoader SEM656D is widely used in Municipal, Construction, Mining, Forestry, Road, Railway, Port,Landscaping, building, sewer/water in, local construction, Ready mix cement, concrete products, quarry/stone, clay, recycled aggregate, sand and gravel, Highway, street, tunnel, airport, residential commercial.
