SMALL WHEEL LOADER SEM636D

SPECIFICATION

SMALL WHEEL LOADER SEM636D	SEM636D SPECIFICATION
Rated load	3000 kg
Operating weight with standard bucket	10133 kg
Bucket capacity	1.53-2.50 m3
Wheel base	2740 mm
Overall dimension	7422 * 2354 * 3182 mm
Max. Tractive force	97 kN
Max. Breakout force	113 kN
Max. Dumping height	2989 mm
Gearbox	SEM TR100
Gear shift	Forward 4 and reverse 2
Torque converter	Single stage, 3 elements
Max. Travel Speed	39 km/h
Axles	Dry type 4x4 heavy duty
Engine Model	WEICHAI DEUTZ WP6G125E22
Rated Power	92 kW @ 2200 r/min
Displacement	6.7 L
Boom raise time	4.65 s
Hydraulic cycle time	8.34 s
System Pressure Setting	18 MPa
Service brake	Dry & Caliper, Air to oil control
Parking brake	Drum / shoe
Tire Size	17.5-25

ADVANTAGE

• The engine of Small wheel Loader SEM636D is WEICHAI WP6G125E22 with 93% desert air cleaner to reduce earlier wearing 90% and new designed shock absorber.
• Small wheel Loader SEM636D can adapt all kinds of climate conditions with Large radiator for over 50℃ high temperature conditions and engine preheat for under -35℃ high cold conditions.
• Efficient hydraulic system of Small wheel Loader SEM636D is with single pump flow shared system for lower fuel consumption and big tractive force and larger breakout force for higher productivity.

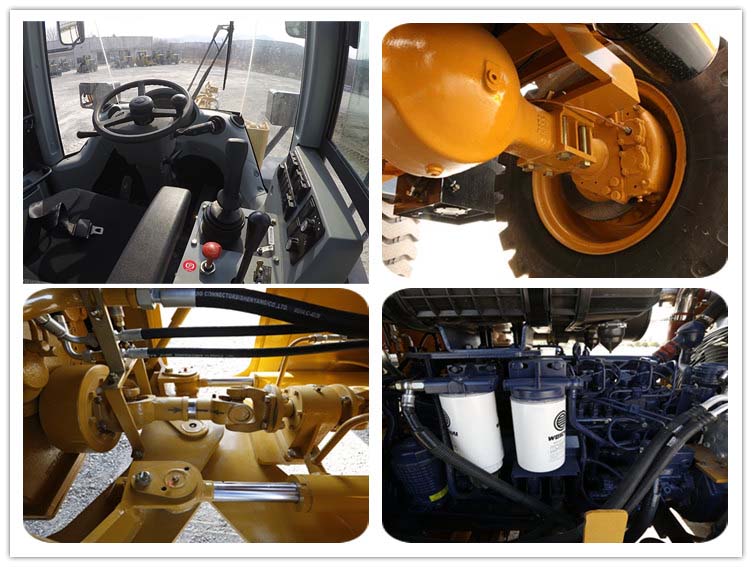

• Small wheel Loader SEM636D's cabin with big space, superior visibility, patented MAC mount for less noise and more comfort,sliding side window,fresh air circulated air conditioner, adjustable air flow outlet to deliver better defrost performance and Suspension adjustable seat.
• Small wheel Loader SEM636D is widely used in municipal, livestock production, farms and also in industrial, recycled material processing in countryside, cement making etc .
